HangTon HE29 Waterproof Electrical Circular 2 Pin Connector Male Female Cable Plug Socket 45A for LED/Power/Lighting Equipment

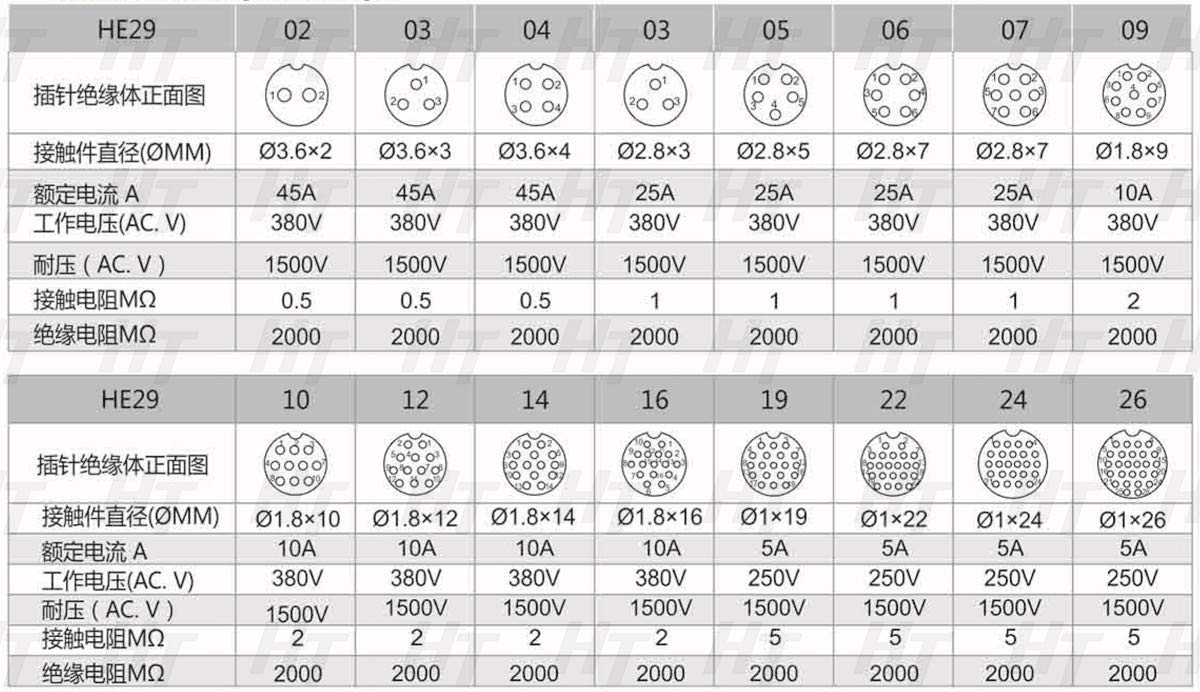

Features: In the harsh environment can provide a safe and reliable connection. HE29(Threaded Coupling) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power. Specifications: HE29: Model: 2-26 Pin Material: Plastic IP Rating: IP68 Panel Cutout Diameter: 29mm Cable Outer Diameter Range:12-15mm Coupling Type: Threaded Coupling Shell: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with Gold Plating Termination: Solder Mating Cycle: >500 times Temperature Range: -40~+100℃ Humidity: +40℃ 95±3% Vibrator: 10~500Hz, acceleration 100m/s² Shock: 40~80times/min, acceleration 250m/s² Package Includes: 1 x Cable Plug with Male Pins 1 x Cable Plug with Female Pins 1 x Waterproof / Dustproof Cap

• Cable Range: 12-15mm, Wire Size: ≤10mm² or 7AWG, Contact Diameter: Φ3.6mm
• Rated Voltage/Current : AC 380V/45A, Resistance: 0.5mΩ
• Protected against solids & liquids, provide a secure and reliable connection in the harsh environment.
• For indoor and outdoor use.
• Waterproof IP68, threaded coupling, quick disconnect, solder male female cable plug
